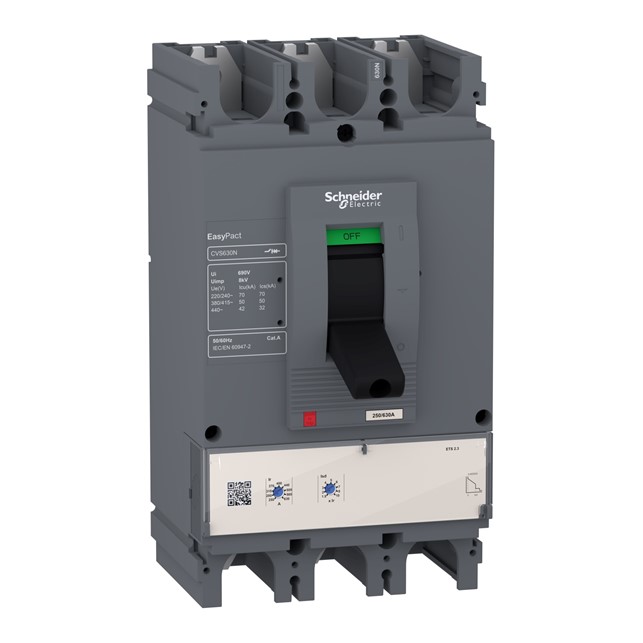

Schneider circuit breaker EasyPact CVS400N, 50 kA at 415 VAC, 400 A rating ETS 2.3 electronic trip unit, 4P 4d (LV540511)
Rp11.087.435
Deskripsi
Spesifikasi
| Range | EasyPact |
|---|---|
| Product name | EasyPact CVS |
| device short name | CVS400N |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 4P |
| Protected poles description | 3D + N/2 4D 3D |
| Earth leakage protection (Vigi add on) | Without |
| [In] rated current | 400 A at 40 °C |
| Network type | AC |
| Utilisation category | Category A |
| [Icu] Breaking capacity | 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit name | ETS 2.3 |
| Trip unit technology | Electronic |
| Trip unit rating | 400 A at 40 °C |
| Protection type | Short time short-circuit protection Instantaneous short-circuit protection Overload protection (long time) |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
|---|---|
| Network frequency | 50/60 Hz |
| Breaking capacity code | N |
| [Ics] rated service breaking capacity | 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 32 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Neutral position | Left |
| Mechanical durability | 15000 cycles |
| Electrical durability | 6000 cycles 415 V In conforming to IEC 60947-2 |
| Trip unit protection functions | LSoI |
| Control type | Toggle |
| Neutral protection setting | 1 x Ir (4D) 0.5 x Ir (3D + N/2) |
| Long time pick-up adjustment type Ir | Adjustable 9 settings |
| Long time pick-up adjustment range | 160…400 A |
| Long time delay adjustment type | Fixed |
| [tr] long-time delay adjustment range | 5.5 s at 7.2 x Ir 8 s at 6 x Ir 200 s at 1.5 x Ir |
| Thermal memory | Yes |
| Short-time pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] short-time pick-up adjustment range | 1.5…10 x Ir |
| Short-time delay adjustment type | Fixed |
| Instantaneous pick-up adjustment type Ii | Fixed |
| Instantaneous pick-up adjustment range | 11 x In |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Upside connection | Front |
| Downside connection | Front |
| Connections – terminals | Screw connection |
| Connection pitch | 45 mm |
| Compatibility code | CVS400 |
| Width | 185 mm |
| Depth | 110 mm |
| Height | 255 mm |
| Product weight | 6.3 kg |
| standards | IEC 60947-2 EN 60947-2 |
|---|---|
| Product certifications | GOST IEC |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.5 cm |
| Package 1 Width | 20.5 cm |
| Package 1 Length | 29 cm |
| Package 1 Weight | 8.23 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 25.19 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 24 |
| Package 3 Height | 107.2 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 204.72 kg |
