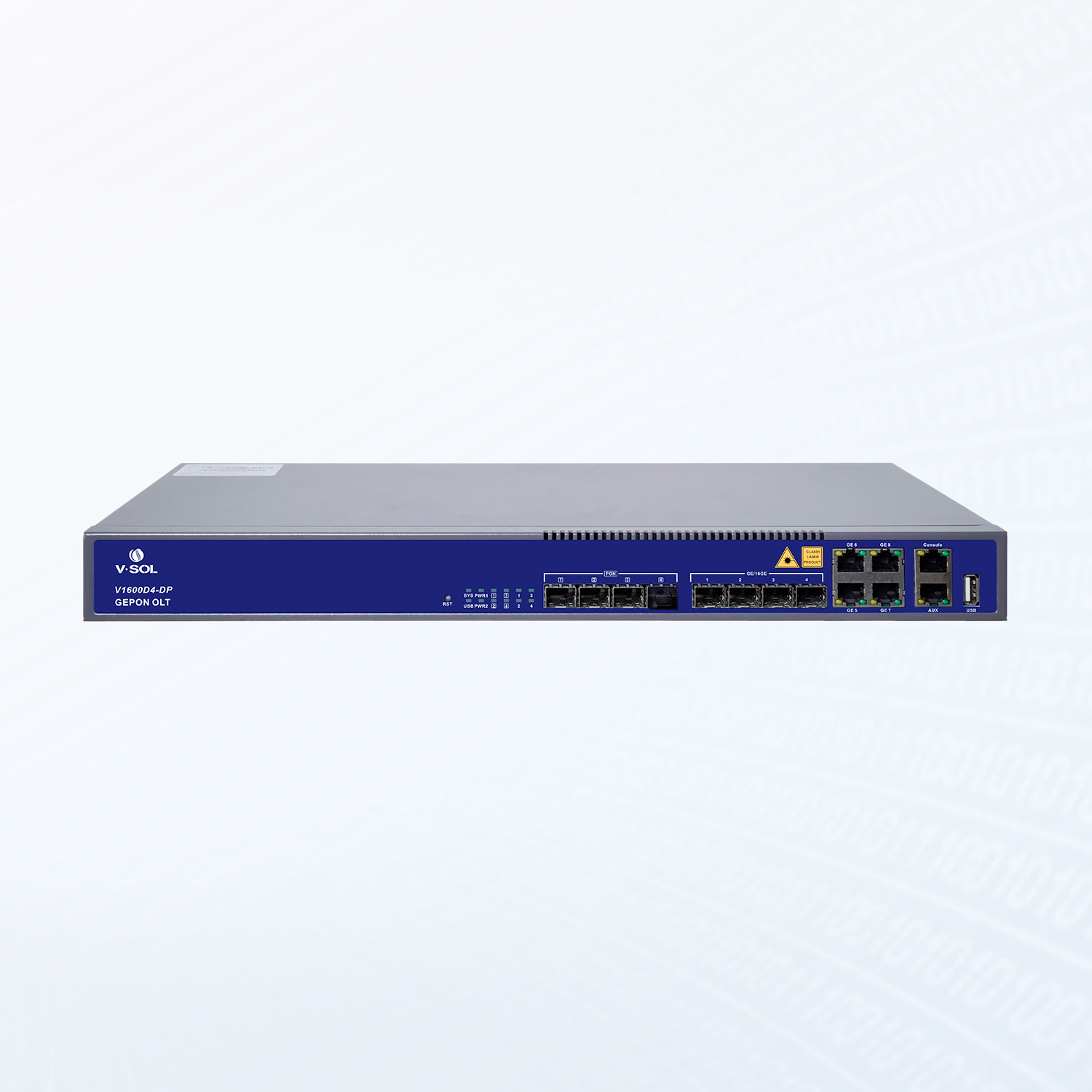

V-SOL 4 Port EPON OLT V1600D4-DP + 4x SFP PX20++++
Rp6.309.740
Model: V1600D4-DP
Spec: 4*EPON,4GE(RJ45)+4*10GE(SFP+) Dual power modules available in DC/AC
Weight: 3.2kg
Deskripsi
| Item | V1600D4-DP/BT | V1600D8 | V1600D16 | |
| Chassis(Rack) | 1U 19 inch standard box | |||
| Uplink Port | QTY | 8 | 16 | 12 |
| RJ45 | 4 | 8 | 4 | |
| SFP (1GE) | / | 4 | 4 | |
| SFP+ (10GE) | 4 | 4 | 4 | |
| EPON Port |
QTY | 4 | 8 | 16 |
| Physical Interface | SFP Slots | |||
| Supported PON Module Level |
PX20++ / PX20+++ | PX20 / PX20+ / PX20++ / PX20+++ |
||
| Max splitting ratio | 1:64 | |||
| Backplane Bandwidth (Gbps) | 128 | |||
| Port Forwarding Rate (Mpps) | 71.424 | 89.280 | 95.232 | |
| Dimension (L x W x H) | 442*200*43.6mm | 442*319*43.6mm | 442*329*43.6mm | |
| Weight | 3.2kg | 4.5kg | 6.5kg | |
| Power Consumption | 30W | 55W | 95W | |
| Power Supply | AC | Working Voltage Range: 100~240V，Rated Voltage: 110/220V | ||
| DC | Working Voltage Range: -36 ~ -75V，Rated Voltage：-48V / -60V（V1600D4-BT support BBU） | Working Voltage Range：-36 ~ -75V， Rated Voltage：-48V / -60V |
||
| Operating
Environment |
Working Temperature | -20 ~ +60°C | ||
| Storage Temperature | -40 ~ +70°C | |||
| Relative Humidity | 5 ~ 95% (non-condensing) | |||
